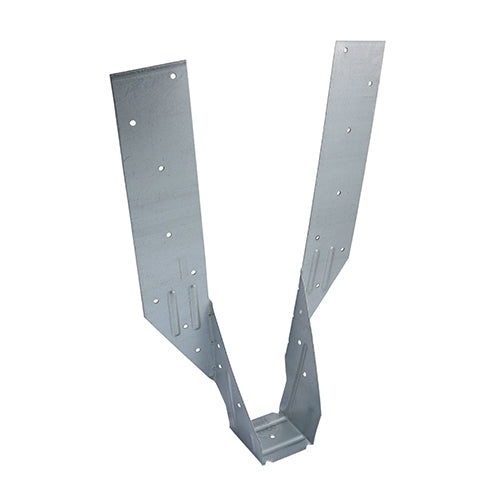

Timber Hangers - Light Duty Hanger (Standard Leg) - Galvanised

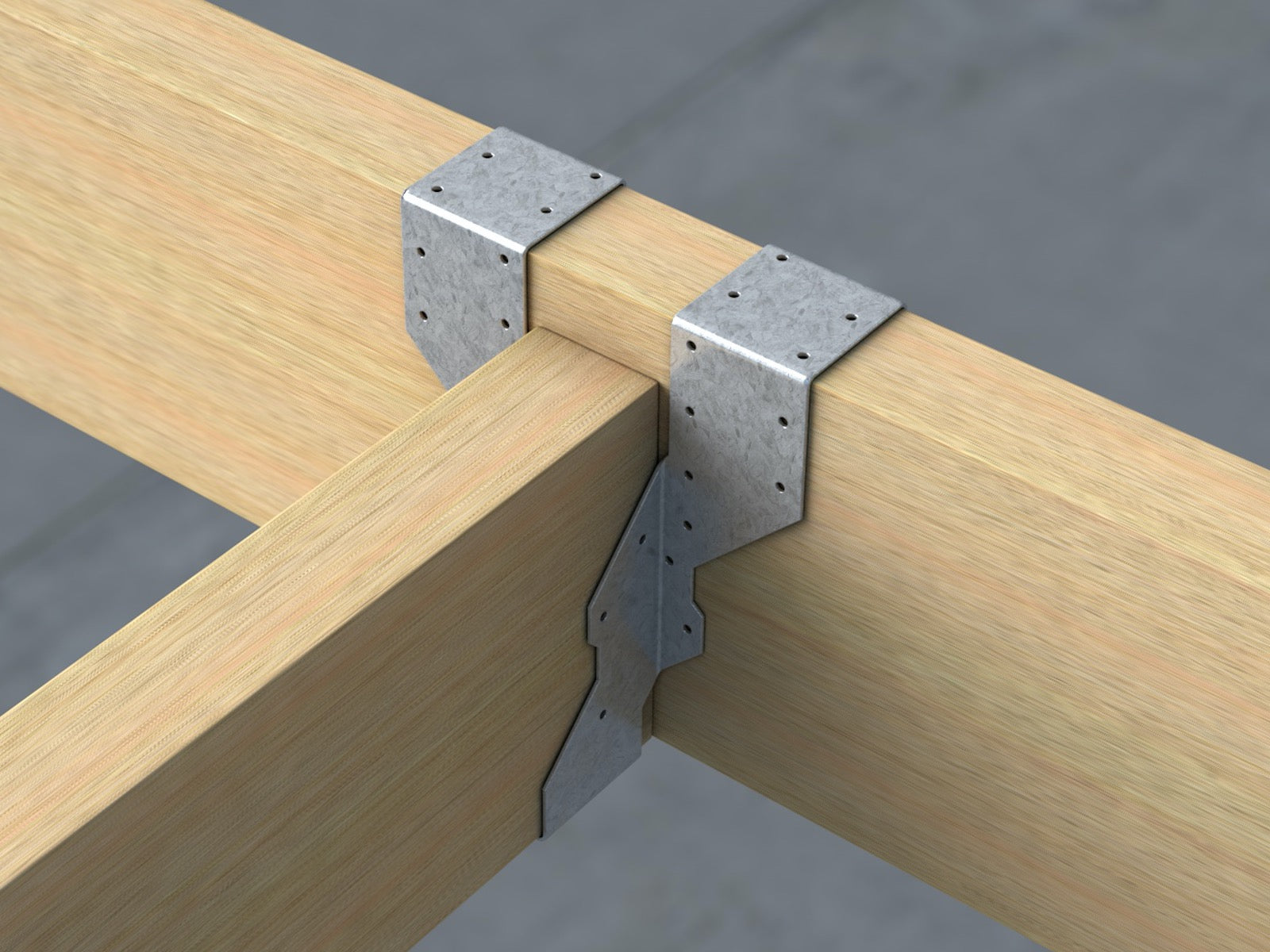

A lightweight galvanised steel joist hanger providing a strong connection and quick and easy installation. Designed with wider 50mm strap legs to enhance performance with increased nail spacing. Suitable for joist depths of 150 to 250mm. Leg length can be adjusted by wrapping over to suit joist height. Also suitable for face fixing.

Material - Produced from 0.9mm thick galvanised steel to BS EN 10346:2009 DX51D + G275 as standard.
Fixing - Fix using either Type A or Type B fixings in all pre-punched holes:
- Type A, 30mm x 3.75mm Sheradised Square Twist Nails usually supplied loose for manual fixing.
- Type B, 35mm x 3.75mm Sheradised Square Twist Nails usually collated for nail gun fixing.

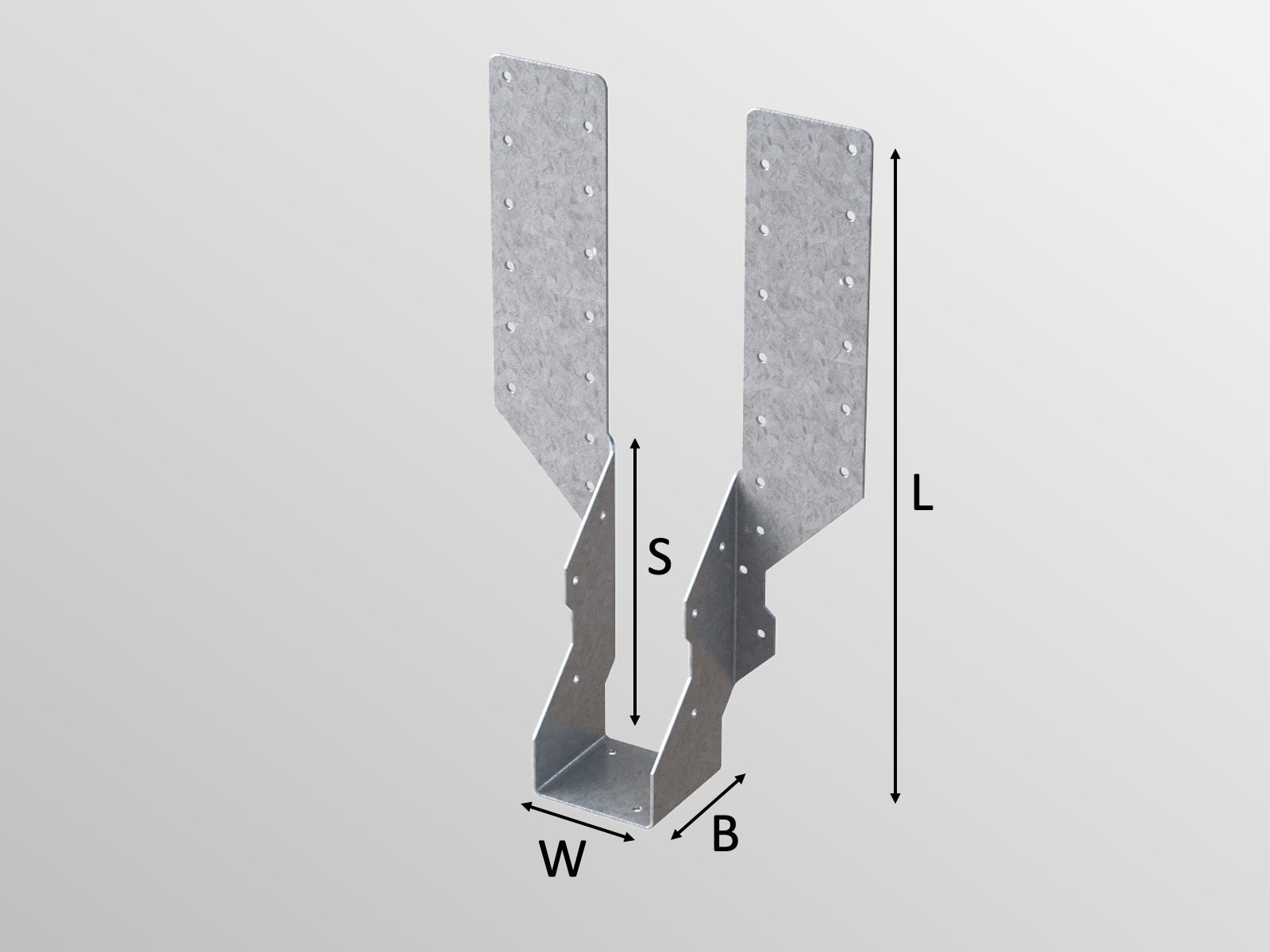

Code	Size	Units
A270/38	W 38 x L 276 x B 50 x S 126mm	100 Box
A270/44	W 44 x L 273 x B 50 x S 123mm	100 Box
A270/47	W 47 x L 272 x B 50 x S 122mm	100 Box
A270/50	W 50 x L 270 x B 50 x S 120mm	100 Box

A270/75	W 75 x L 258 x B 50 x S 108mm	100 Box

A270/91	W 91 x L 250 x B 50 x S 100mm	100 Box
A270/100	W 100 x L 245 x B 50 x S 95mm	100 Box
